Nordhavn Overview
- Celebrity Owners: Bjork (Icelandic Musician & Songwriter), Gene Hackman (American Actor), John McVie (British Bass Guitaris) & Late (1946 – 2023) Jimmy Buffet (American Musician & Songwriter)
- Constructed in China, Taiwan & Turkey
- Designed & Produced by Pacific Asian Enterprises (PAE) Inc
- First (PAE) Mason Design was a 43′ Sailboat
- First Trawler N4601 Built in 1989
- Founded in 1978
- Headquartered in Dana Point, CA
- Models: N40, N47, N51, N52, N56MS, N59CP, N60, N62, N63, N68, N71, N75, N76, N80, N86, N96 & N120
![](https://mvsoulmates.us/wp-content/uploads/2024/02/N47xx.webp)

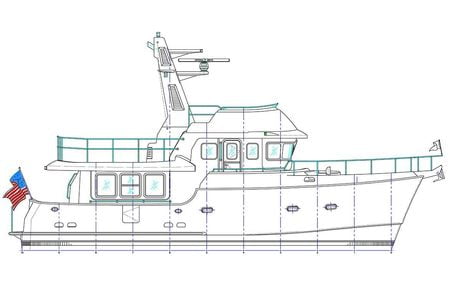

About the Norhavn 47′
- 59 Hulls Built
- Cruises up to 8 Knots
- Designed by Nordhavn Owner & Chef Designer, Jeff Leishman
- Designed for Ocean Crossing & Open Waters
- Designed with a Single 170hp Lugger Main Engine
- Discontinued Build
- Equipped with GE Appliances, Granite Countertops, Spruce Floors & Teak Cabinetry
- First Build in 2003
- Keel Cooled with a Dry Stack Exhaust
- Modifications Occurred Roughly Hull#10
- Most Successful New Product Launch in PAE History
- N52 is a N47 with a Extended Cockpit Area
- Production from 2002 – 2009
- Range of 3,000 Nautical Miles
- Staterooms in 2 or 3 Room Layout
![](https://mvsoulmates.us/wp-content/uploads/2024/02/N47-drawings-interior-1-1024x734.jpg)
About Our Nordhavn N4701
- 1 Main Engine Lugger
- 1 Yanmar 40hp Wing Engine
- 2 700 Gallon Main Fuel Tanks
- 2 Full Heads
- 2 Staterooms
- Appliances: Dishwasher, Dryer, Trash Compactor & Washer
- Bow Thruster
- Flopper Stopper System (Portside)
- Furano System
- Hurricane Heating System
- Naiad Stabilizing System
- Northern Lights Generator
- Rocna Anchor
- Spectra Newport Watermaker (400 Gallons/Daily)
- Time Zero Pro
![](https://mvsoulmates.us/wp-content/uploads/2024/02/346646133_528647965947822_1852344285671248157_n-2.jpg)
Our N4701 at Quick Glance:
- Air Height: 29′
- Beam: 16′.08″
- Class: Trawler
- Cruising Speed: 6.5 Knots
- Displaces: 85,000 lbs
- Draft: 5′.6″
- Fresh Water Tank Capacity: 400 Gallons
- Fuel Capacity: 1490 Gallons
- Fuel Type: Diesel
- Holding Tank: 120 Gallons
- Hull Material: Fiberglass
- Length: 47′.02″ (LOA 51′)
- Max Speed: 7.5 Knots
- Model: N47 (N4701)
- Range: 3000 Nautical Miles
- Year: 2003
